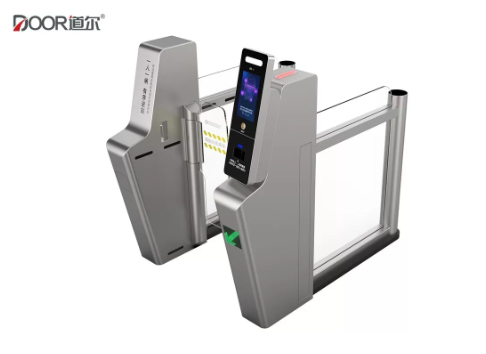

SUS304 Stainless Steel Airport Turnstile with Face Recognition

Informacion basica

Place of Origin:	China
Nombre de la marca:	DOOR or OEM
Certificación:	CE / IS09001
Model Number:	DR.TD6632

Minimum Order Quantity:	2 sets
Precio:	negotiable
Packaging Details:	wood carton
Delivery Time:	5-7 working days
Payment Terms:	T/T
Supply Ability:	2500 sets per month

Mejor precio Contactar ahora

Material:	SUS304 brushed stainless steel Top cover 2.0mm, whole body 1.5mm	Suitable For:	Access Control, Entrance And Exit Control
Turnstile Material:	SUS304 Stainless	Communication Interface:	RS485,dry Contact
Power Supply:	AC110/AC220+/-10%	Swing arm available:	Acrylics Or Tempered Glass
Driving Motor:	Servo motor	Opening Signal Input::	Dry Contact
Working environment:	-25℃-+70℃	Pass speed:	30-35 Personal/min
Support System:	Face Recognition,ic/id Card,fingerprint	Motor:	DC24V Brushless Motor
Passage Width:	≤700 mm	IP Rating:	IP42
Mean Cycles Between Failure:	20 million times	Voltage:	AC110V/AC220V±10% 50-60Hz
Method of position:	Motor Driving	Mtbf:	5 Million Times
Size:	L1516×W200×H1511.31mm	Number of Sensor:	22 groups
Resaltar:	SUS304 stainless steel airport turnstile , airport turnstile with face recognition , stainless steel face recognition turnstile

Ultra-Fast & Secure Railway Access

Product Specifications

Attribute	Value
Material	SUS304 brushed stainless steel Top cover 2.0mm, whole body 1.5mm
Suitable For	Access Control, Entrance And Exit Control
Turnstile Material	SUS304 Stainless
Communication Interface	RS485, dry Contact
Power Supply	AC110/AC220+/-10%
Swing arm available	Acrylics Or Tempered Glass
Driving Motor	Servo motor
Opening Signal Input	Dry Contact
Working environment	-25℃-+70℃
Pass speed	30-35 Personal/min
Support System	Face Recognition, ic/id Card, fingerprint
Motor	DC24V Brushless Motor
Passage Width	≤700 mm
IP Rating	IP42
Mean Cycles Between Failure	20 million times
Voltage	AC110V/AC220V±10% 50-60Hz
Method of position	Motor Driving
MTBF	5 Million Times
Size	L1516×W200×H1511.31mm
Number of Sensor	22 groups

Optimized Features

Multiple Real-Name Verification: Strictly integrates facial/fingerprint recognition, ID/passport verification, and ticket validation to accurately record real-name information.
High-Security AB Door Interlock: Utilizes an AB door interlock structure (Door A open/Door B closed, and vice versa). Passage is only granted upon successful verification of all required methods.
Unidirectional Traffic Control: Enforces one-way passage (e.g., entry only), effectively manages reverse passenger flow, separates inbound/outbound streams.
Brushless Servo Motor Drive: Offers excellent synchronization, stable, smooth and jitter-free operation, quiet performance, fast start/stop speed.
Extended Motor Lifespan: Employs brushless motor design with exceptionally low failure rate and long service life of 5 to 8 years.
Core Face-ID Matching: Centers on industry-leading facial recognition technology with real-time comparison of "Face" and "ID Document" information.
Police System Integration: Interfaces with police systems (covering databases for fugitives, drug-related suspects, key monitored individuals, etc.).

Key Features

Seamless integration with industry-standard access control devices (IC/ID card readers, QR code scanners, facial recognition terminals)
Dedicated fire button interfaces with the system for automatic gate release during emergencies
8 military-grade infrared sensors with advanced algorithms prevent tailgating and reverse passage
Multi-layer anti-pinch design and optional widened lane for luggage/wheelchair access
Compatible with RS485, TCP/IP (optional), and dry contact interfaces

Note: Recognition systems not included; product provides standardized connection interfaces only

Applications

Widely used for official or corporate buildings, sectioning off certain areas in University lab access points, industrial buildings or hospital radiology departments.

Customization Options

Customized logo (Min. order: 2 pieces)
Customized packaging (Min. order: 2 pieces)
Graphic customization (Min. order: 2 pieces)

Supplier's Customization Ability

Minor customization
Drawing-based customization
Sample-based customization
Full customization

Shipping Information

Shipping fee and delivery date to be negotiated. Contact supplier for more details.
